Setting Up the Epson TM-m30 Printer (USB)

To use the Epson receipt printer, you'll first need to prepare it and connect it to your iPad via USB. To do this, you'll also need a Lightning cable, which is included in the standard package by default.

Preparing the USB Receipt Printer

• Take the printer out of the packaging and place it where you'd like it to go.

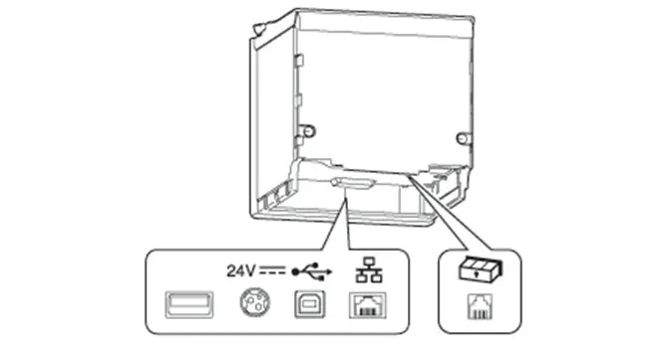

• Connect the power adapter and interface cable to the ports on the bottom of the printer.

• Connect the interface cable to the device and plug the power adapter into an outlet.

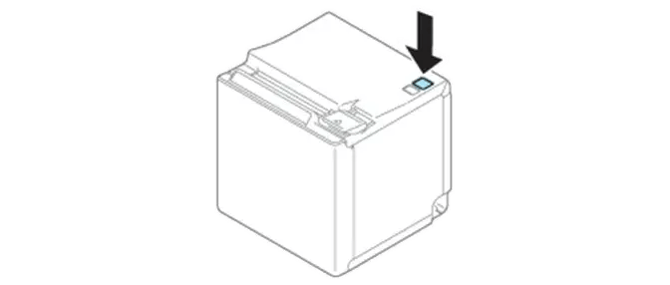

• Press the power switch to turn it on or off.

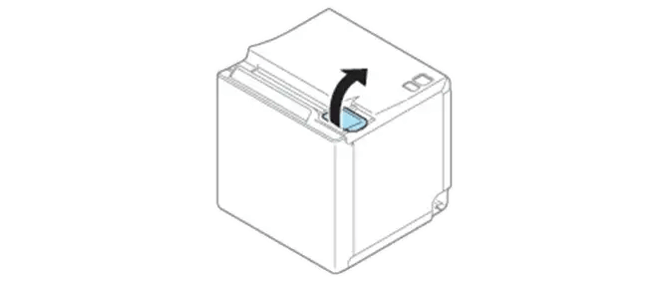

• Now insert the receipt roll. First open the printer's top cover by pressing the lever on the right side.

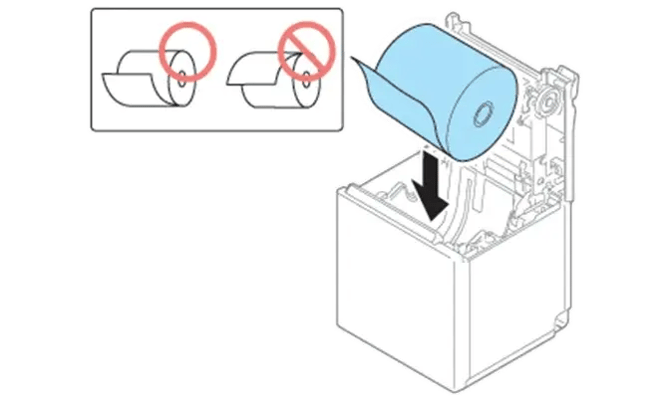

• Insert the receipt roll as shown in the illustration below.

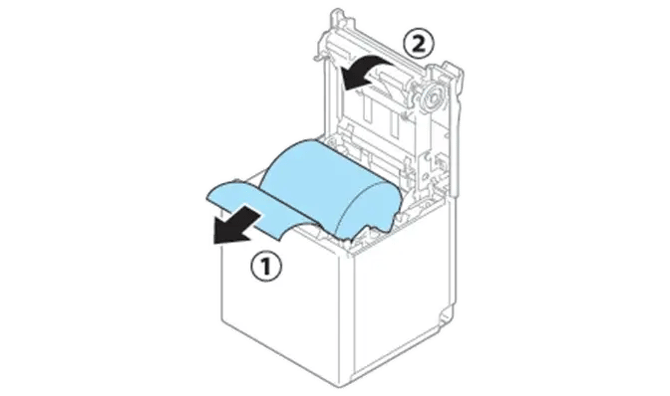

• Let the end of the roll stick out slightly from the printer, then close the cover by pressing down on both sides.

Connecting the USB Receipt Printer to Your iPad

You'll need a Lightning-to-USB-A cable for this, of the kind typically included with an iPad. Follow these steps to connect the iPad:

• Plug the USB-A port on the back of the printer into the left connector.

• Connect the other end to your iPad. You'll know the connection is active because your iPad will start charging.

Setting the USB Receipt Printer in the Shore POS

• Open the Shore POS App on your iPad.
• Tap the arrow > in the top left to open the app menu, and select Settings at the bottom.
• Select the menu item Hardware > Select Printer.
• Tap the Epson entry to set the printer as the active device.

Your USB printer will now be used for every print job, while also charging your iPad at the same time.
